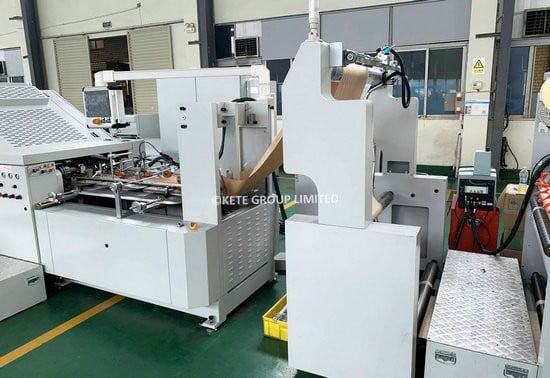

KTPM-BW330 Series Roll Feeding Square Bottom Paper Bag Making Machine with Plastic Window

This square bottom paper bag making machine use roll-type paper to make various sized square bottom paper bags with plastic window.

Features

PLC Touch Screen Use SCHEIDER Brand (France)
PC Motion Controller use LENZE Brand (Germany)
Servo Motor use LENZE Brand (Germany)
Inverter Use DELTA Brand (Taiwan)
Photo Sensor Use SICK Brand (Germany)
EPC Use SELECTRA Brand (Italy)
Electrical Box with AC Condition
Optional Inline Flexo Printing Machine (2 colors/4 colors)

Request A Quote

Products Our Machine Can Make

square bottom paper bag making machine sample

Paper Bags

Machine Specifications

Model	KTPM-BW190	KTPM-BW330
Tube Length	190-370mm	270-530mm
Bag Width	80-200mm 65-200mm (Customized)	120-330mm
Bottom Width	50-105mm 45-105mm (Customized)	60-180mm
Paper Thickness	40-130gsm	50-150gsm
Paper Feeding Speed	≤100m/min	≤110m/min
Mechanical Speed	30-260pcs/min	30-220pcs/min
Paper Bag Making Speed	30-200pcs/min	30-180 pcs/min
Paper Jumbo Roll Width	280-630mm	380-1050mm
Paper Jumbo Roll Diameter	Φ1300mm	Φ1300mm
Paper Core Diameter	Φ76mm	Φ76mm
D Cut Window Width	50-120mm	50-120mm
D Cut Window Height	50-120mm	50-120mm
Strip Window Width	50-100mm	60-150mm
Machine Power	31kw	36kw
Machine Weight	8500kg	11000kg
Machine Size (LWH)	12500x3700x2200mm	14500x4000x2100mm
Power Support	3 Phase 220/380/440V 50/60HZ

Main Features

Finished Bag

Paper Bag With Plastic Window

square bottom paper bag making machine unwind

Unwind Unit

With Hydraulic Auto-Loading

With Auto Tension Control

Max Diameter: 1300mm

Auto Tension Control

Power Brake: 10kg

square bottom paper bag making machine EPC

EPC Unit

Control Paper Feeding Way Design

Control by Servo Motor

Use Ultrasonic Sensor

Emboss Unit

Magnetic Roller

Servo Motor Control

square bottom paper bag making machine film attach

Film Attached Unit

Servo Motor Control

Photo Sensor

Printing Mark Checking

square bottom paper bag making machine gluing

Side Gluing Unit

Water-based Glue

square bottom paper bag making machine tube forming

Tube Forming Unit

Use Fixed Forming Mold

square bottom paper bag making machine cutting

Tube Cutting Unit

Servo Motor Control

square bottom paper bag making machine bottom forming

Bottom Forming Unit

Servo Motor Control

square bottom paper bag making machine rewind

Rewind Unwind

Auto Counting

Patch Quantity Set

square bottom paper bag making machine touch screen

PLC Touch Screen

Support Different Language

Online Computer Connect

Control Box

LENZE Brand Servo System

square bottom paper bag making machine Inline 2 Color Printing

Inline 2 Color Flexo Printing (Optional)

Use Water Base Ink

Use Rubber Plate

Doctor Blade System

Ink Recycle System

Max Printing Speed: 100m/min

square bottom paper bag making machine Inline 4 Color Printing

Inline 4 Color Flexo Printing (Optional)

Use Water Base Ink

Use Rubber Plate

Doctor Blade System

Ink Recycle System

Max Printing Speed: 100m/min
