KTPM-B450 Series Roll Feeding Square Bottom Paper Bag Manufacturing Machine

This Roll Feeding Square Bottom Paper Bag Manufacturing Machine uses roll-type paper to make square bottom paper bags without handles.

Features

  • PLC Touch Screen Use SCHEIDER Brand (France)
  • PC Motion Controller use LENZE Brand (Germany)
  • Servo Motor use LENZE Brand (Germany)
  • Inverter Use DELTA Brand (Taiwan)
  • Photo Sensor Use SICK Brand (Germany)
  • EPC Use SELECTRA Brand (Italy)
  • Electrical Box with AC Condition
  • Optional Double Unwind System
  • Optional Inline Flexo Printing Machine (2 colors/4 colors)
CE Certification
RoHS Certification

Products Our Machine Can Make

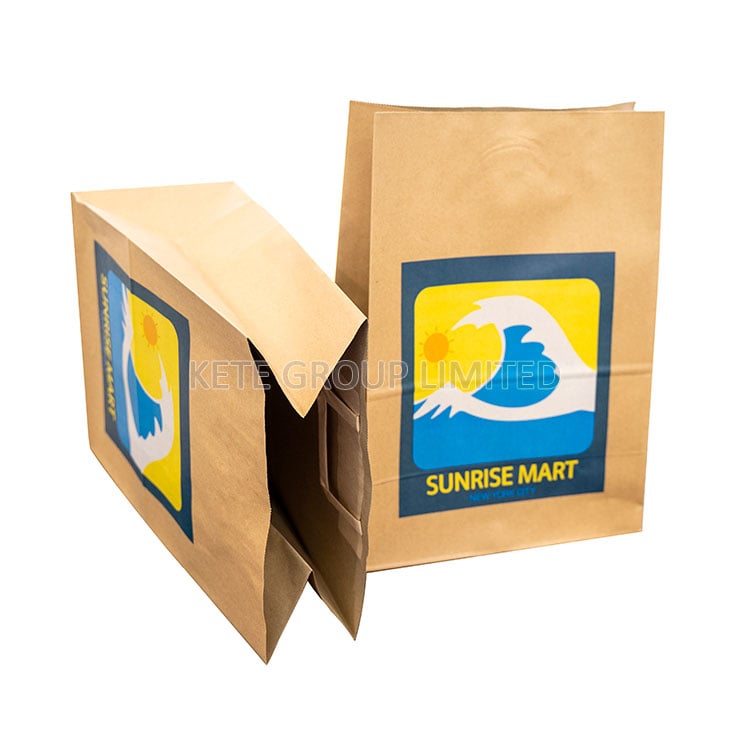

paper bag manufacturing machine samples
Paper Bags
paper bag manufacturing machine samples
Paper Bags
paper bag manufacturing machine samples
Paper Bags
paper bag manufacturing machine samples
Paper Bags
paper bag manufacturing machine samples
Paper Bags
paper bag manufacturing machine samples
Paper Bags
paper bag manufacturing machine samples
Paper Bags
paper bag manufacturing machine samples
Paper Bags
Machine Specifications
Model KTPM-B450 KTPM-B450A KTPM-B450B
Tube Length 270-530mm 300-630mm 380-760mm
Bag Width 200-450mm 220-450mm 220-450mm
Bottom Width 90-180mm 100-220mm 80-230mm
Paper Thickness 70-150gsm 80-150gsm 80-150gsm
Paper Feeding Speed ≤90m/min ≤90m/min ≤90m/min
Mechanical Speed 30-200 pcs/min 30-180 pcs/min 30-150 pcs/min
Paper Bag Making Speed 30-180 pcs/min 30-150 pcs/min 30-120 pcs/min
Paper Jumbo Roll Width 610-1290mm 670-1370mm 630-1390mm
Paper Jumbo Roll Diameter Φ1300mm Φ1300mm Φ1300mm
Paper Core Diameter Φ76mm Φ76mm Φ76mm
Inline Printing Function (Optional)
Printing Color 2colors/4colors 2colors/4colors 2colors/4colors
Printing Length 100-1360mm 100-1360mm 100-1460mm
Printing Width 270-530mm 300-630mm 380-760mm
Printing Speed 10-100m/min 10-100m/min 10-100m/min
Color Register Precision ≤±0.20mm ≤±0.20mm ≤±0.20mm
Rubber Plate Thickness 2.28mm+0.38mm

1.7mm + 0.38mm

2.28mm+0.38mm

1.7mm + 0.38mm

2.28mm+0.38mm

1.7mm + 0.38mm

Working Air Current 0.36m³/ min (0.5-0.8 MPa) 0.36m³/ min (0.5-0.8 MPa) 0.36m³/ min (0.5-0.8 MPa)
Machine Power 15kw

23.8kw (inline 2 colors)

27.4kw (inline 4 colors)

17.5kw

23.5kw (inline 2 colors)

26.5kw (inline 4 colors)

17.5kw

23.5kw (inline 2 colors)

26.5kw (inline 4 colors)

Machine Weight 9000kg

11500kg (inline 2 colors)

12000kg (inline 4 colors)

10500kg

12500kg (inline 2 colors)

13000kg (inline 4 colors)

10500kg

12500kg (inline 2 colors)

13000kg (inline 4 colors)



Machine Size (LWH)

10000x3800x2200mm

16400x5000x2500mm (inline 2 colors)

17700x5000x2500mm (inline 4 colors)

12000x3800x2200mm

16500x5000x2500mm (inline 2 colors)

17800x5000x2500mm (inline 4 colors)

12000x3800x2200mm

16500x5000x2500mm (inline 2 colors)

17800x5000x2500mm (inline 4 colors)

Power Support 3 Phase 220/380/440V 50/60HZ

Main Features

Paper Bag Manufacturing Machine Unwind

Unwind Unit

With Hydraulic Auto-Loading

With Auto Tension Control

Max Diameter: 1300mm

Auto Tension Control

Power Brake: 10kg

Paper Bag Manufacturing Machine EPC

EPC Unit

Control Paper Feeding Way Design

Control by Servo Motor

Use Ultrasonic Sensor

Paper Bag Manufacturing Machine Photo Sensor

Photo Sensor

Printing Mark Checking

Paper Bag Manufacturing Machine Gluing

Side Sealing Glue

Water Based Glue

Electrical Valve Control Glue Feeding

Optional Hot Melt Glue (Laminated Paper)

Paper Bag Manufacturing Machine Tube Forming

Tube Forming Unit

Use Fixed Forming Mold

Paper Bag Manufacturing Machine Cutting

Tube Cutting Unit

Servo Motor Control

Paper Bag Manufacturing Machine Bottom Forming

Bottom Forming Unit

Servo Motor Control

Paper Bag Manufacturing Machine Rewind

Rewind Unwind

Auto Counting

Patch Quantity Set

Paper Bag Machine Touch Screen

PLC Touch Screen

Support Different Language

Online Computer Connect

Paper Bag Manufacturing Machine Inline 2 Color Printing

Inline 2 Color Flexo Printing (Optional)

Use Water Base Ink

Use Rubber Plate

Doctor Blade System

Ink Recycle System

Max Printing Speed: 100m/min

Paper Bag Manufacturing Machine Inline 4 Color Printing

Inline 4 Color Flexo Printing (Optional)

Use Water Base Ink

Use Rubber Plate

Doctor Blade System

Ink Recycle System

Max Printing Speed: 100m/min

Paper Bag Manufacturing Machine Double Unwind

Double Unwind (Optional)

Auto Loading

Water Glue Sealing
