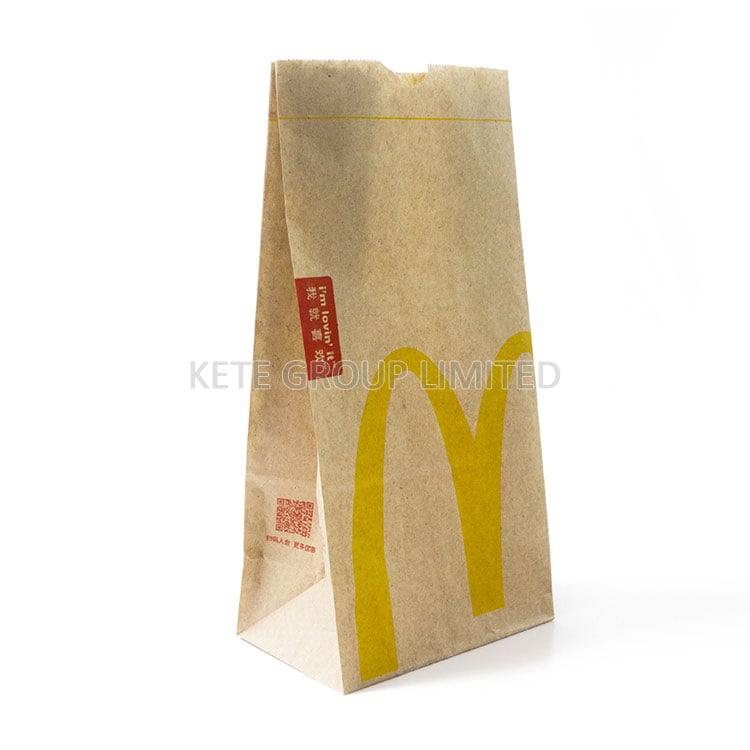

This Roll Feeding Fully Automatic Paper Bag Machine Use Roll Type Paper Make Various Sized Square Bottom Paper Bags Without Handles.
| Model | KTPM-B190 | KTPM-B190P |
| Tube Length | 190-370mm | 190-370mm |
| Bag Width | 80-200mm (Standard) 65-200 mm (Customized) | 80-200mm (Standard) 65-200mm (Customized) |
| Bottom Width | 50-105mm (Standard) 45-105mm (Customized) | 50-105mm (Standard) 45-105mm (Customized) |
| Paper Thickness | 40-130gsm | 40-130gsm |
| Paper Feeding Speed | ≤100m/min | ≤100m/min |
| Mechanical Speed | 30-260pcs/min | 30-260pcs/min |
| Paper Bag Making Speed | 30-200pcs/min (Stable) | 30-200pcs/min (Stable) |
| Paper Jumbo Roll Width | 280-630mm | 280-630mm |
| Paper Jumbo Roll Diameter | Φ1300mm | Φ1300mm |
| Paper Core Diameter | Φ76mm | Φ76mm |
| Inline Printing Function (Optional) | ||
| Printing Color | 2Colors / 4Colors | |
| Printing Length | / | 190-370mm |
| Printing Width | / | 100-960mm |
| Printing Speed | / | 10-100 m/min |
| Color Register Precision | / | ≤ ±0.20mm |
| Rubber Plate Thickness | / | 2.28mm+0.38mm 1.7mm + 0.38mm |
| Working Air Current | / | 0.36m³/ min (0.5-0.8 MPa) |
| Machine Power | 11.5kw | 19.7kw (inline 2 colors) 22.9kw (inline 4 colors) |
| Machine Weight | 6000kg | 7800kg (inline 2 colors) 8400kg (inline 4 colors) |
| Machine Size (LWH) | 8500x3500x2200mm | 11000*3500*2800mm (inline 2 colors) 11500*3500*2800mm (inline 4 colors) |
| Power Support | 3 Phase 220/380/440V 50/60HZ | |
With Hydraulic Auto-Loading
With Auto Tension Control
Max Diameter: 1300mm
Auto Tension Control
Power Brake: 10kg
Control Paper Feeding Way Design
Control by Servo Motor
Use Ultrasonic Sensor
Printing Mark Checking

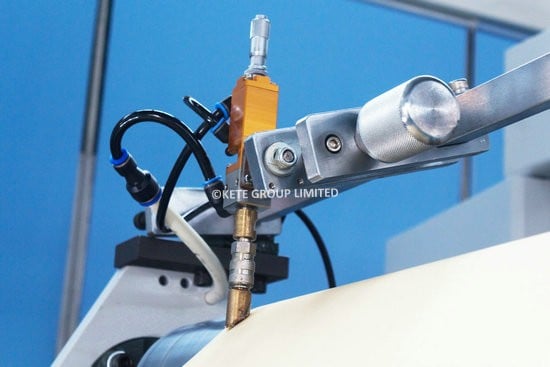

Water Based Glue
Electrical Valve Control Glue Feeding
Optional Hot Melt Glue (Laminated Paper)
Use Fixed Forming Mold
Servo Motor Control
Servo Motor Control
Auto Counting
Patch Quantity Set
Support Different Language
Online Computer Connect
Use Water Base Ink
Use Rubber Plate
Doctor Blade System
Ink Recycle System
Max Printing Speed: 100m/min
Use Water Base Ink
Use Rubber Plate
Doctor Blade System
Ink Recycle System
Max Printing Speed: 100m/min
Auto Loading
Water Glue Sealing
