KTPM-HF Series High Speed Flat Paper Handle Making Machine

This Flat Paper Handle Making Machine uses a two-layer narrow paper roller and one twisted rope to make the flat paper handle

CE Certification
RoHS Certification

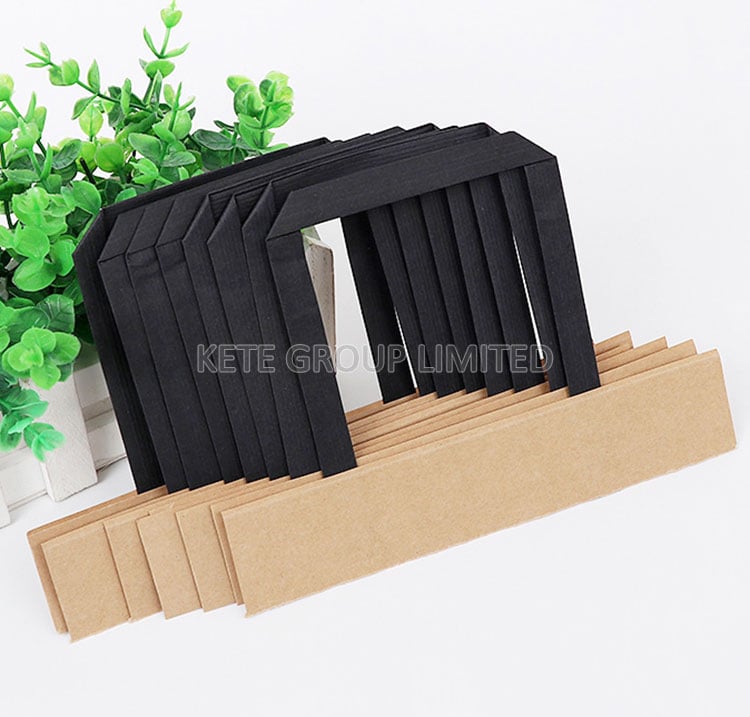

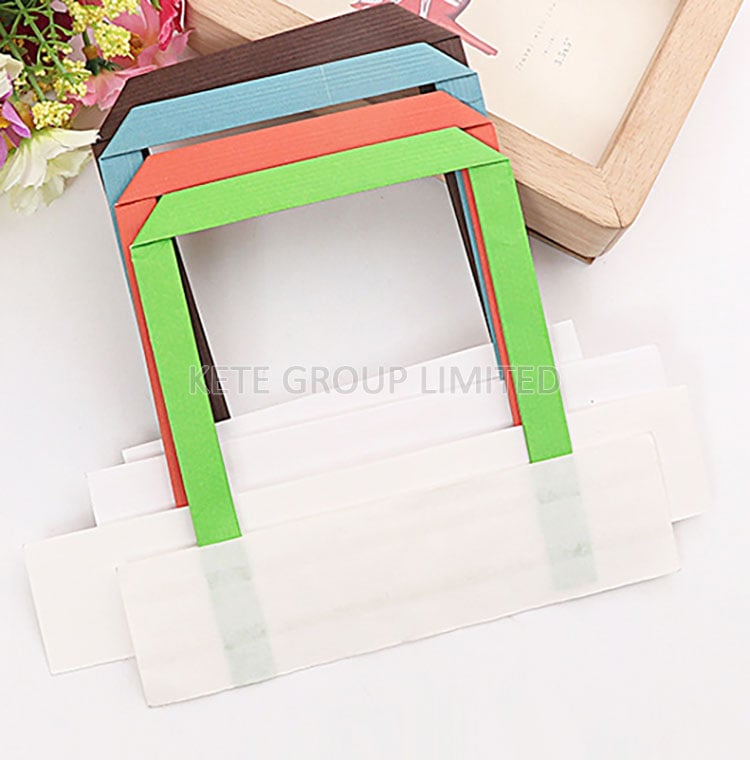

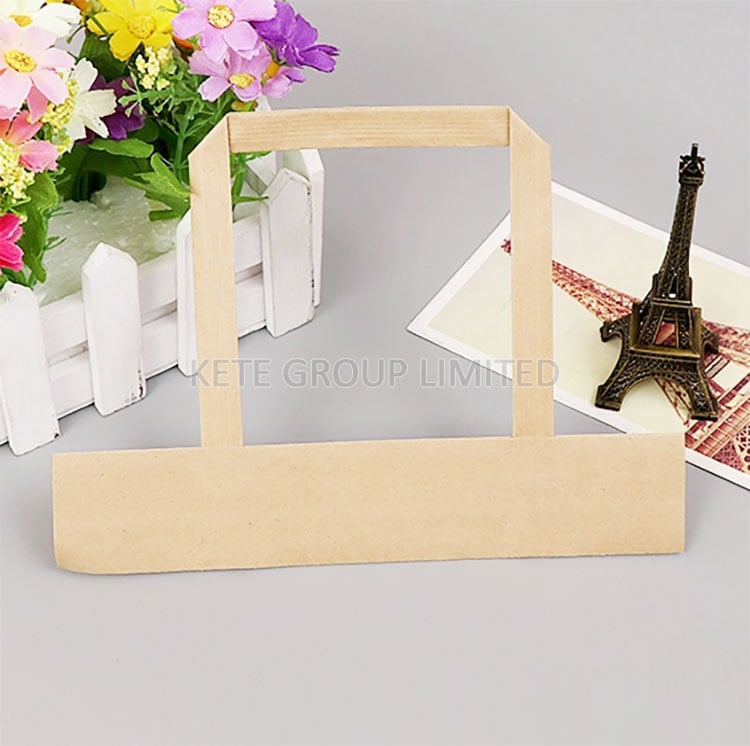

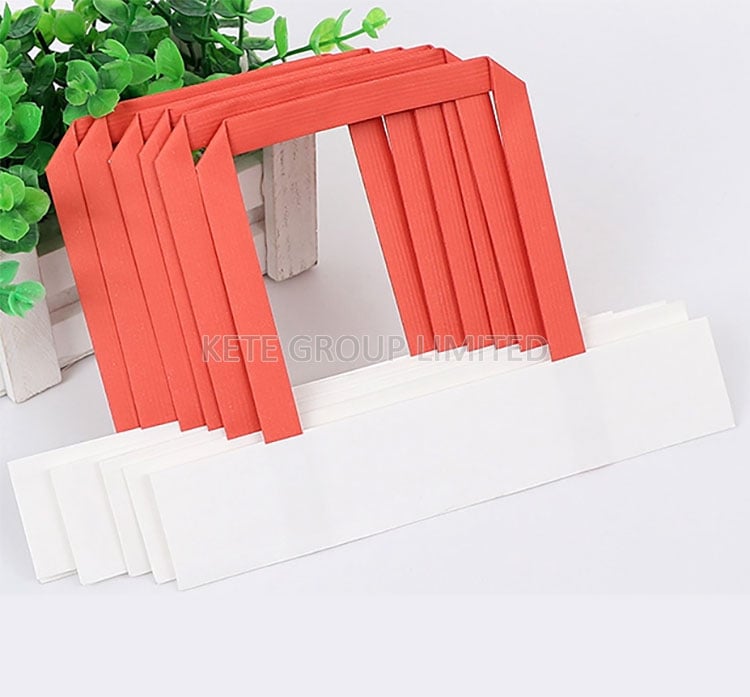

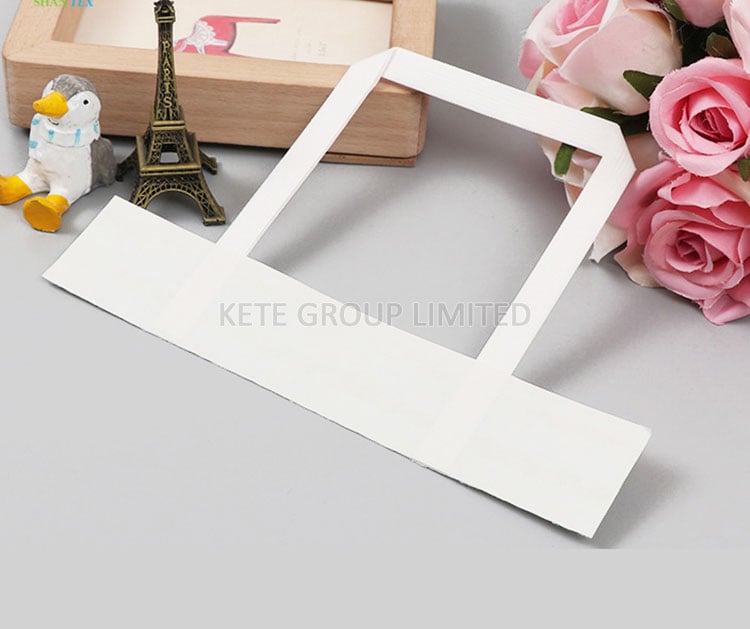

Products Our Machine Can Make

Flat Handle Cord 6
Paper Bag Handle
Flat Handle Cord 1
Paper Bag Handle
Flat Handle Cord 3
Paper Bag Handle
Flat Handle Cord 7
Paper Bag Handle
Machine Specifications
Model KTPM-HF78 KTPM-HF84
Handle Type Flat Handle Flat Handle
Glue Type Hot-melt Glue Hot-melt Glue
Flat Handle Inner Distance(a) 78mm 84mm
Flat Handle Width(b) 15mm 12mm
Flat Handle Height(c) 100mm 100mm
Paper Handle Patch Sheet Height(d) 40mm 40mm
Paper Handle Patch Sheet Width(e) 152mm or 190mm 152mm or 190mm
Paper Flat Handle Length 352mm 352mm
Paper Thickness 100-120gsm 100-120gsm
Production Speed 6000pairs/h 6000pairs/h
Paper Handle Patch Roll Diameter Φ1000mm Φ1000mm
Paper Core Diameter Φ76 mm (3″) Φ76 mm (3″)
Machine Power 10kw 10kw
Machine Weight 4000kg 4000kg
Machine Size (LWH) 5000 x 1500 x 1500mm 5000 x 1500 x 1500mm
