KTSM-C600T Series High Speed Turret Slitter Rewinder

The Innovative Turret Slitter Rewinder Combines the Capabilities of a Duplex Center Winder with The Productivity Gains of a Turret. The Machine can Handle Materials Including Paper, Primary Films, Flexible Packaging Laminations, and Label Stock. It Significantly Reduces Downtime Between sets and uses Auto-Splicing and Cutting Technologies. The Cutoff is Done Close to The Rewind Point, Producing Short Strands That Can Be Precisely Controlled for Roll Alignment.

Features

Unwind Shaftless Auto Loading
Unwind EPC Control System
Auto Tension Control System
Unwind Splice Table
Shear or Razor Blade Slitting
Trim Removal Blower
Static Eliminator Brush
Duplex Rewinder Differential Shafts
Optional: Laser Core Positioning
Optional: Trim Waste Winder
Optional: Auto Pusher with Unload Tree
Optional: Camera System
Optional: Safety Fencing and Safety Sensor

Send Enquiry

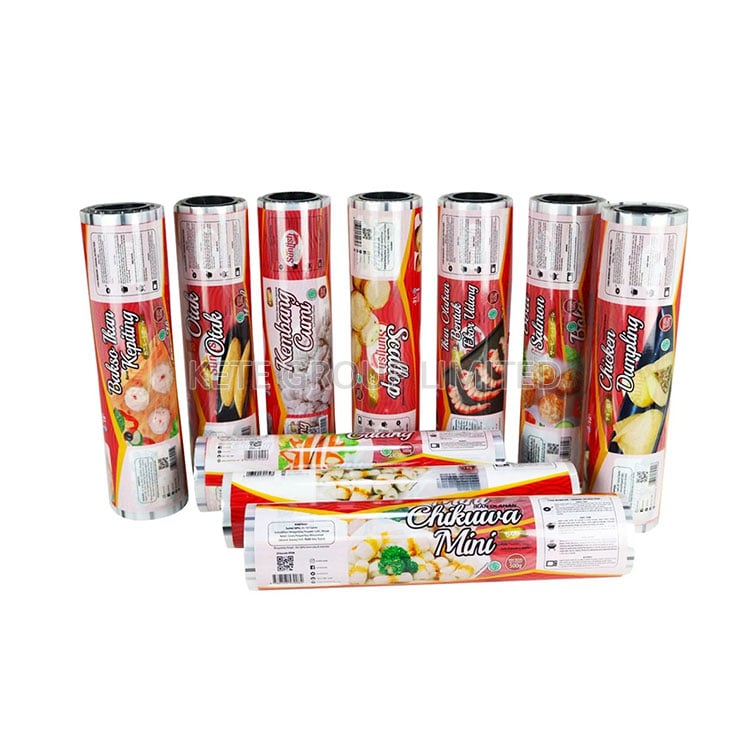

Products Our Machine Can Make

Machine Specifications

Model	KTSM-C600T/ 1100	KTSM-C600T/ 1300
Rewind Structure	Dual Turret Rewind	Dual Turret Rewind
Max. Raw Material Width	1000mm (39.4”)	1200mm (47.2”)
Max. Unwind Diameter	Φ600mm (23.6”)	Φ600mm (23.6”)
Max. Rewind Diameter	Φ450mm (17.7”)	Φ450mm (17.7”)
Min. Slitting Width	50mm (1.97”)	50mm (1.97”)
Max. Mechanical Speed	600m/min	600m/min
Paper Core Inner Diameter	76mm/152mm (3”/6”)	76mm/152mm (3”/6”)
Slitting Techniques	Razor Blade In Air	Razor Blade In Air
Trim Removal	Blower Fan	Blower Fan
Air Supply	0.6-0.8 Mpa (0.8m³/min)	0.6-0.8 Mpa (0.8m³/min)
Total Power	15kw	18kw
Machine Weight	4000kg	4200kg
Machine Size (LWH)	2200x4000x2100mm	2200x4300x2100mm
Machine Power	5Lines 3 Phase 220/380/440V 50/60HZ
