KTPC-D Series High Speed Wine Capsule Making Machine

This High Speed Wine Capsule Machine Uses the Shrinkable PVC Or PET Film or Polylaminate Material to Make Wine Capsules with Different Multifunction Functions. It Is Wildly Used for Red Wine Bottle, White Wine Bottle, Yellow Wine Bottle, Beer Bottle, Condiment Bottle, Olive Oil Bottle Security Sealing.

Features

  • Skirt Horizontal /Vertical Perforation
  • Skirt Vertical /Horizontal Tear-off Tape
  • Skirt C Punch Function
  • Skirt 1/2/3 Color Hot Stamp
  • Top Disc 1/2/3 Color Hot Stamp
  • Top Disc 1 Color Raised Printing
  • Top Disc Emboss and Breath Hole
  • Capsules Inline Inspection
  • Top Disc 2 Colors Hot Stamp
CE Certification
RoHS Certification
ISO9001
Price Start From: US$ 142,000.00

Products Our Machine Can Make

wine capsule making machine samples 1
Polylaminate Capsules
wine capsule making machine samples 2
PVC Capsules
wine capsule making machine samples 6
Polylaminate Capsules
wine capsule making machine samples 3
Heat Shrink Capsules
wine capsule making machine samples 4
PVC Capsules
wine capsule making machine samples 9
PVC Capsules
wine capsule making machine samples 5
Polylaminate Capsules
wine capsule making machine samples 10
Polylaminate Capsules
wine capsule making machine samples 7
Polylaminate Capsules
wine capsule making machine samples 8
PVC Capsules
Machine Specifications
Layout Drawing
Model KTPC-D
Raw Materials Shrink PVC Film / PET-G Film/Polylaminate
Mandrels 12
Max. Unwind Diameter Φ600mm (23.6”)
Max. Unwind Width 146mm (5.75”)
PVC /PET-G Film Thickness 60-75mic (2.36”-2.95”)
Polylaminate Material Thickness 100-120mic (3.94”-4.72”)
Capsules Top Diameter Φ30mm-Φ44mm (1.18”-1.73”)
Capsules Bottom Diameter Φ31mm-Φ45mm (1.22”-1.77”)
Capsules Height 35-80mm (1.4”-3.15”)
Max. Mechanical Speed 200Capsules/min
Capsule Making Speed 150-180Capsules/min
Capsules Taper 1.5-5°
Paper Core Inner Diameter Φ76mm (3”)
Total Power 25kw
Machine Weight 4500kg
Machine Size (LWH) 6800x3000x2000mm
Power Support 5 Lines 3 Phase 220/380/440V 50/60HZ
KETE wine capsule making machine layout

KETE Wine Capsule Making Machine Layout

Main Features

Wine Capsule Making Machine Unwind

Unwind Unit

Max Diameter:600mm

With EPC Control System

Forward and Reverse Rotation

Wine Capsule Making Machine C Punch

C Punching Unit

Use for Polyalm Capsules Perforation

Only Use For Polylam Capsules

Wine Capsule Making Machine Perforation

Perforation Unit

Vertical Perforation

Horizon Perforation

Use For PVC Capsules

Use For Polylam Capsules

Wine Capsule Making Machine 2 Colors Hot Stamp

Skirt Hot Stamp Unit

Skirt 1 Color Hot Stamp

Skirt 2 Color Hot Stamp

Use For PVC Capsules

Use For Polylam Capsules

Wine Capsule Making Machine Tear Off Tape

Easy Open Tear Off Tape

Use For PVC Capsules

Use For Polylam Capsules

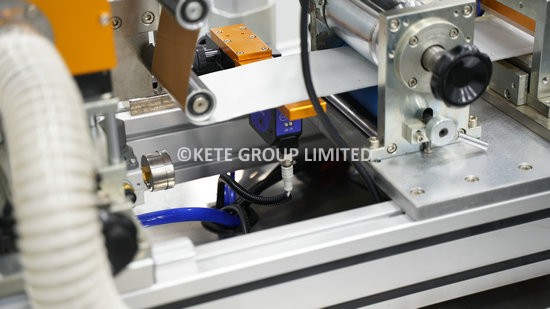

Wine Capsule Making Machine Photo Sensor

Skirt Photo Sensor

Check Printing Mark

Use For PVC Capsules

Use For Polylam Capsules

Wine Capsule Making Machine Touch Screen

Touch Screen

All Set In Touch Screen

Wine Capsule Making Machine Forming

Capsules Forming Unit

PVC Capsules Forming

Polylam Capsules Forming

Top Disc Hot Stamp

Top Disc Sealing

Top Disc Embossing

Top Disc Breath Hole

Top Disc Raised Printing

Wine Capsule Making Machine Hot Stamp

Top Disc Hot Stamp

Use For PVC Capsules

Use For Polylam Capsules

Wine Capsule Making Machine Blowing Out

Out Feed

Blowing Out Capsules

Wine Capsule Making Machine Rewind

Rewind Unit

Collect Capsules
