Rotogravure Printing Examples: From Snack Bags to Flooring — What Gravure Actually Produces

Walk down any supermarket aisle, and you are surrounded by gravure printing. The glossy chip bag you grabbed for lunch. The shrink-wrapped bottle of oat milk in your fridge. The chocolate wrapper with the metallic gold logo that caught your eye. All of it — every square centimeter — was likely printed by a rotating steel cylinder engraved with microscopic cells, spinning at up to 500 meters per minute.

Gravure printing (also called rotogravure) is the dominant technology for high-volume flexible packaging, yet most people have never heard of it. That is a strange kind of invisibility for a process that produces roughly 80% of the world’s flexible packaging by volume, with the global gravure package printing market reaching an estimated $55.6 billion in 2024 and projected to grow to $67 billion by 2029.

This article walks through real gravure printing examples — products you encounter every day, applications you might not expect, and what the output actually looks like when you know how to spot it. Whether you are a packaging converter evaluating equipment, a brand owner specifying print quality, or simply someone who wants to understand the industrial backbone behind the packaging on your shelf, these examples will show you what gravure actually produces.

What Is Gravure Printing — and Why Seeing Examples Matters

Gravure printing is an intaglio process: the image is engraved as millions of microscopic cells into a chrome-plated steel cylinder, which rotates through a liquid ink bath. A doctor blade scrapes excess ink from the non-printing surface, leaving ink only in the engraved cells. The cylinder then presses against the substrate — typically a plastic film, paper, or aluminum foil — transferring the ink under pressure and capillary action.

Three numbers define what the process can do. Cylinder engraving depth runs from 12-55μm — deeper cells hold more ink and produce richer color. Cell density varies from 50-200 lines per centimeter: finer screens capture photographic detail, coarser ones handle solid color blocks. Press speeds reach 150-500 meters per minute, depending on the substrate and ink type.

But the numbers only tell half the story. The best way to understand gravure’s capabilities is to look at what it actually produces — from the packaging in your pantry to the flooring under your feet. The examples that follow are organized from the familiar to the surprising, each revealing a different strength of the technology.

Everyday Products You Didn’t Know Were Gravure-Printed

Gravure dominates wherever three conditions meet: high production volume, demanding color consistency, and thin flexible substrates. These three conditions describe almost every packaged product in a modern supermarket — which means you have been handling gravure-printed material daily, probably for decades, without realizing it.

Food Packaging: The Snack Aisle Is a Gravure Gallery

The snack aisle is essentially a gravure printing exhibition. Open a bag of potato chips and look closely at the packaging: the glossy, photograph-quality image of golden chips on the front was printed in reverse on a PET film, then laminated to a layer of aluminum foil and polyethylene sealant. The structure typically goes PET 12μm / gravure ink layer / white backing / adhesive / aluminum 7-9μm / PE 60-80μm. The ink sits between the outer PET layer and the aluminum — a technique called reverse printing — which means it cannot be scratched off no matter how many times the bag is handled.

Chocolate bar wrappers exploit gravure’s thick ink film to achieve solid metallic coverage. That gold or silver block behind the brand logo is not foil — it is metallic gravure ink deposited at a film thickness of 8-12μm (wet), roughly two to three times what flexographic printing can lay down in a single pass. The result is a solid, reflective surface with no pinholes or thin spots.

Instant noodle seasoning sachets demonstrate the opposite capability: extremely fine text printed at high speed on minimal surface area. A typical sachet might contain ingredient lists, nutritional data, and cooking instructions in multiple languages — all printed at 150 meters per minute with registration accuracy within ±0.15 millimeters. Coffee bags add another layer of complexity: the multi-material laminate (PET/aluminum/PE) must survive heat-sealing at 150-180°C without the ink layer delaminating or discoloring, requiring gravure inks formulated for thermal stability with a color shift of less than ΔE 1.5 after one second at 200°C.

Beverage Labels and Shrink Sleeves: Where Gravure Meets the Shelf

Coca-Cola’s iconic contour bottle labels have been printed by rotogravure for decades. Few technologies can match its consistency across billions of impressions. The label film (typically PVC or PETG, 40-50μm thick) is reverse-printed so the ink sits between the film and the bottle surface, protected from moisture, friction, and UV exposure.

A more technically demanding example comes from the 2025 New Zealand Pride In Print Awards: the Boring Oat Milk Barista shrink sleeve, produced by Gravure Packaging, won the Process Award for its vertical vignette gradient, double-sided print, invisible UV eyemark, and matte over-lacquer finish. The sleeve incorporates proprietary light-barrier technology that allows the product to use a fully transparent, recyclable PET bottle while still protecting the oat milk from light degradation. From a printing perspective, the challenge is shrink compensation: the PVC or PETG film shrinks 50-70 percent in the transverse direction during the heat tunnel, so the gravure cylinder artwork must be pre-distorted — stretched horizontally by a factor of 1.5-1.7 times — so that the image snaps back to its correct proportions after shrinking. Getting this wrong by even one percent produces visibly oval logos and distorted text.

Household Items and Decor: Gravure Beyond the Grocery Aisle

Wallpaper is one of gravure’s oldest and largest non-packaging applications. A typical wallpaper gravure press runs at 300-500 meters per minute, printing continuous seamless patterns across web widths of 1,000-3,000 millimeters. The engraved cylinder can run for over one million revolutions before needing re-chroming — critical for an industry where a single wallpaper design may sell for years and re-engraving would introduce visible pattern drift.

Furniture surface films — the wood-grain and stone-pattern laminates on flat-pack furniture, kitchen cabinets, and flooring — are another high-volume gravure application. The photorealism achievable with gravure’s wide tonal range (engraving depths from 12μm for highlights to 55μm for shadows) makes it the preferred process for decorative surfaces where the printed pattern must pass for real wood or stone at arm’s length. Seamless tile repeat across panels is achieved with cylinder circumferences up to 1,200 millimeters and edge-matching precision within 0.1 millimeters.

High-circulation magazines and mail-order catalogs — those with print runs exceeding one million copies — still use gravure for the lowest cost per page at scale. While digital and offset have captured most of the publication market, gravure retains the long-run segment where its cylinder cost ($2,000-$8,000 per color) is amortized across millions of impressions.

Flexible Packaging Applications: The Engine Room of Gravure Printing

Flexible packaging accounts for roughly 80 percent of all gravure printing volume. But the term “flexible packaging” covers four distinct formats, each with its own gravure requirements. Format dictates cylinder specs, ink formulation, and post-press processing. If you are evaluating gravure for your own product line, understanding these differences matters more than any single specification number.

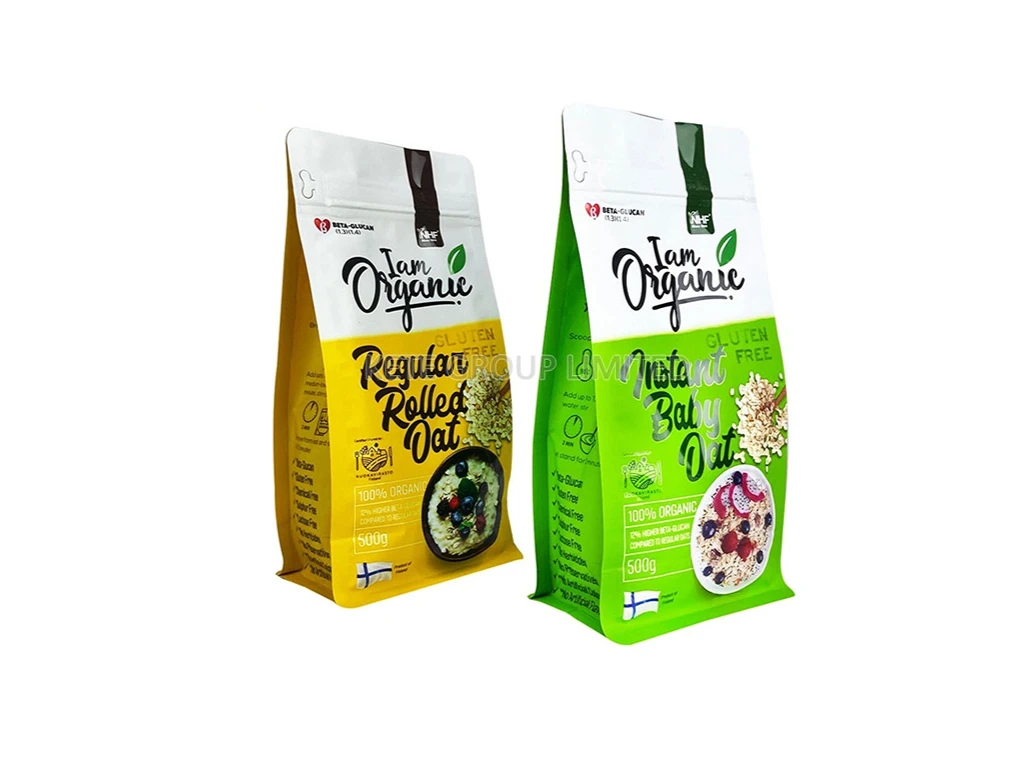

Stand-Up Pouches and Sachets: The Fastest-Growing Format

Stand-up pouches have been the fastest-growing flexible packaging format for over a decade, and gravure is their dominant print technology. A typical 250-milliliter juice spout pouch demonstrates the full capability stack: photo-quality fruit imagery on the front panel, fine-print nutritional information on the back, and a multi-layer structure (PET 12μm reverse-printed / gravure ink / white backing / adhesive / aluminum 7-9μm / PE 80-120μm sealant) that provides oxygen and moisture barrier performance while maintaining a high-gloss retail appearance.

Pet food pouches — now a multi-billion-dollar category — push gravure’s solid-color coverage capability to its limit. Large areas of dark, uniform color (deep reds, navy blues, forest greens) must print without streaks, thin spots, or color variation across runs that may span hundreds of thousands of units. Gravure’s 8-12μm wet ink film provides the opacity needed to cover the substrate completely, something thinner flexo ink films struggle to achieve on large solid areas.

Laundry detergent refill pouches add chemical resistance to the requirement list. The ink must survive contact with aggressive surfactant formulations that can dissolve standard packaging inks within hours. Gravure ink manufacturers formulate specific solvent-based systems for chemical resistance, tested by immersion in the target product for 72 hours at 40°C with zero visible degradation.

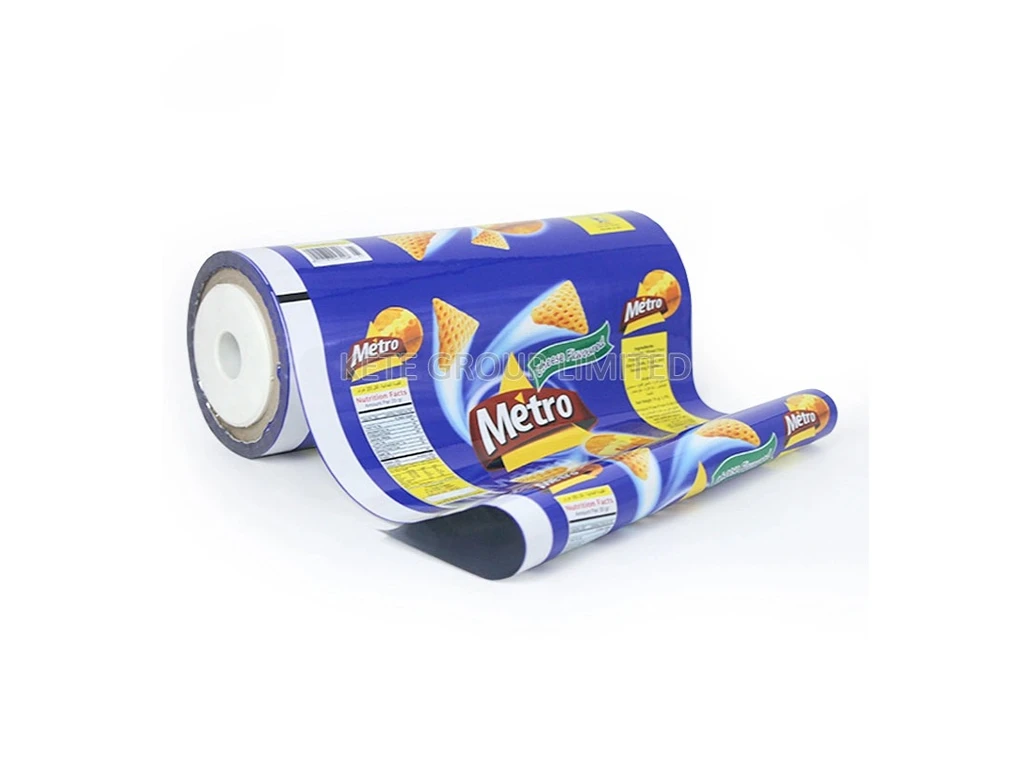

Laminated Films and Wrappers: The Workhorse of Snack Packaging

If stand-up pouches are gravure’s showpiece, laminated wrappers are its bread and butter. The flow-wrap film around a chocolate-covered wafer bar — KitKat being the canonical example — is a PET or BOPP film, reverse-printed by gravure, then adhesive-laminated to a cold-seal coating on the reverse side. The metallic shine consumers associate with premium confectionery is created not by the substrate itself but by gravure-printed metallic inks viewed through the glossy outer film layer.

Candy twist-wrap films operate at the extreme thin end of the substrate range: 12-20μm, often metallized BOPP or cast PP. At these thicknesses, web tension control becomes the dominant technical challenge. Too much tension stretches the film and throws registration out of tolerance; too little creates wrinkles that destroy print quality. Gravure presses designed for thin-film work use servo-driven tension zones with load-cell feedback at every station, maintaining web tension within ±2 Newtons across the entire print run.

Instant noodle lid films — the peelable foil or film lidding on cup noodles — are another high-precision application. The lid must carry brand graphics, ingredient declarations, and cooking instructions in legible text, survive heat-sealing to the cup rim, and then peel cleanly without tearing. The gravure ink must bond to the film surface strongly enough to survive the sealing cycle (150-180°C for 0.5-1.5 seconds) but not so strongly that it transfers to the cup rim during peeling.

Shrink Sleeves and Labels: Full-Body Branding with Precision

Shrink sleeves represent gravure at its most technically demanding. Unlike flat labels that cover a fraction of the container, a shrink sleeve wraps the entire surface — often 360 degrees around a contoured bottle — which means every square millimeter of the sleeve carries printed graphics that must align perfectly after shrinking.

The Constantia Jeanne d’Arc plant in France won industry recognition for a Danone Danio yogurt banderole printed by rotogravure on paper, demonstrating that gravure’s quality advantage extends to paper-based sleeves as well as plastic films. The print achieves the fine tonal gradation needed for photographic yogurt-and-fruit imagery while maintaining the brand’s precise corporate color across millions of units — a consistency that would require constant operator adjustment on a flexo press but is built into the engraved cylinder on gravure.

Technically, the process flow is: design with pre-distortion compensation → cylinder engraving with the distorted artwork → gravure printing with in-line coating (matte, gloss, or soft-touch varnish) → slitting to individual sleeve widths → seaming into tubes → application and heat shrinking. The pre-distortion step is the make-or-break point: if the artwork is not correctly stretched to anticipate 50-70 percent transverse shrinkage, every sleeve that comes out of the heat tunnel will show visibly distorted graphics. Once the cylinder is engraved correctly, however, the process repeats identically across millions of impressions — which is exactly why global brands trust gravure for their highest-volume SKUs.

Pharmaceutical Blister Packs: When Printing Must Meet GMP

Pharmaceutical packaging is gravure’s invisible high-stakes application. The aluminum foil lidding on a blister pack of tablets — the foil you push the pill through — carries printed text that must remain 100 percent legible after folding, cutting, heat-sealing, and years of shelf storage. Drug names, dosage strengths, batch numbers, and expiry dates are printed by gravure on aluminum foil 20-30μm thick at speeds of 150-250 meters per minute.

The regulatory framework is unforgiving. Good Manufacturing Practice (GMP) regulations under 21 CFR Part 211 in the United States and Annex 11 in the European Union require that printed pharmaceutical packaging maintain traceability for the entire shelf life of the product — typically three to five years. The printed text must survive abrasion testing (a minimum of 50 rubs without character loss), must not transfer ink to the drug contact surface under accelerated aging conditions (40°C / 75 percent relative humidity for six months), and must use only inks from approved pharmaceutical-grade formulations with full toxicological documentation.

The next time you push a tablet through its foil backing, consider this: every letter on that foil was engraved into chrome-plated steel, filled with pharmaceutical-grade ink, and transferred to aluminum at highway speed — then tested more rigorously than the packaging of any consumer product you will ever buy.

Beyond Packaging: Industrial and Decorative Gravure Applications

While packaging dominates gravure volume, a substantial minority of output goes into industrial and decorative applications that operate on an entirely different scale. These applications typically involve wider webs, longer runs, and higher per-order values than even the largest packaging jobs.

These categories collectively account for roughly 20 percent of gravure printing volume — but because their print runs are measured in millions of square meters rather than thousands of units, individual contracts in these segments often exceed the total annual value of a typical packaging converter’s entire book of business.

Gravure vs. Flexo: Which Printing Method Fits Your Product?

After seeing what gravure can produce, the natural question is: should my product be printed with gravure or flexo? There is no universally “better” process — the right choice depends on your print run length, your substrate, and what “quality” means for your specific product. The comparison below is built on measurable parameters, not adjectives.

Print Quality and Detail: Where Each Technology Excels

Gravure and flexo have complementary strengths in print quality, and the choice between them often comes down to which type of quality matters more for a given product.

In color vibrancy, gravure holds a clear advantage. Its engraved cells deposit 8-12μm of wet ink film thickness compared to flexo’s 3-5μm — roughly two to three times the ink volume. The result is noticeably richer color saturation and deeper blacks. This is why luxury packaging, premium spirits labels, and high-end cosmetic cartons overwhelmingly choose gravure: the thicker ink film reads as “expensive” on a subconscious level that consumers cannot articulate but consistently prefer in blind tests.

For fine text and line work, the advantage flips to flexo. Gravure’s engraved cell structure produces a characteristic serrated edge effect on letterforms — under magnification, the edges of printed text appear slightly jagged, following the pattern of individual engraved cells. The practical minimum font size for gravure text is approximately 6 points; below this, legibility degrades rapidly. Flexo’s photopolymer plates produce clean, sharp letter edges with measured line-width deviation of only 2.63 percent from the intended value using modern flat-top dot plate technology (Kodak Flexcel NXH system).

For photographic detail, gravure’s wider tonal range — made possible by cell depths from 12-55μm — provides smoother gradations from highlight to shadow. This is critical for applications like food photography on packaging, where a potato chip or chocolate piece must look appetizing enough to trigger a purchase decision in the two to three seconds a shopper’s gaze rests on the product.

For long-run consistency, gravure is unmatched. An engraved chrome-plated cylinder produces identical print quality from the first impression to the millionth, with no plate wear, no dot gain drift, and no operator adjustment needed mid-run. Flexo plates, by contrast, show measurable wear after 500,000 to one million impressions, particularly on abrasive substrates, requiring plate changes that introduce the risk of color shift between the old and new plate sets.

The Flexographic Technical Association has published extensive comparison data on these parameters; their technical white papers provide the most current side-by-side measurements for anyone making a data-driven equipment decision.

Cost and Run Length: The Economic Equation

The economic comparison between gravure and flexo is not about which is cheaper — it is about where the crossover point falls for your specific production volume.

Gravure’s cost structure is front-loaded. Each color station requires an engraved cylinder costing $2,000-$8,000 for electronic engraving or $5,000-$15,000 for laser engraving, depending on circumference and width. An eight-color job therefore carries a cylinder investment of $16,000-$120,000 before the first meter of substrate runs. Once engraved, however, the marginal cost per impression is extremely low — ink consumption is predictable, waste is minimal, and press speeds can reach 300-500 meters per minute on modern equipment.

Flexo’s cost structure is back-loaded. Photopolymer plates cost $300-$800 per color, making the setup investment for an eight-color job approximately $2,400-$6,400 — an order of magnitude less than gravure. But the per-impression cost is higher: plates wear and require replacement (typically every 500,000 to one million impressions), ink consumption per square meter is higher due to the thinner film requiring more passes for opacity, and press speeds for high-quality work are lower (typically 150-300 meters per minute for CI flexo on film).

The practical consequence: for runs under 5,000 linear meters, flexo or digital is almost always more economical. Between 5,000 and 50,000 meters, the decision depends on color count, substrate, and quality requirements — both processes can be cost-competitive. Above 50,000 meters, gravure’s lower marginal cost increasingly dominates, and above 100,000 meters, gravure is usually the clear economic winner. If your packaging design changes seasonally (quarterly promotions, limited-edition variants), flexo’s lower plate change cost outweighs gravure’s run-length efficiency — you will never amortize the cylinders before the design changes.

Substrate Compatibility: What Each Process Can Print On

Both processes handle the common flexible packaging substrates — PET, BOPP, CPP, PE, paper, and aluminum foil — but they diverge at the extremes.

Gravure excels on thin films (down to 10μm for capacitor-grade films) where its lower mechanical growth preserves fine-line accuracy better than flexo, which can experience line-width growth of up to 16 percent in the print direction and 19.5 percent in the cross-print direction at 150 lines per inch. It also handles rough or textured surfaces better: the thicker ink film fills surface irregularities that a thin flexo ink layer would bridge incompletely, leaving visible pinholes.

Flexo excels on rigid or irregular substrates — corrugated board, thick paperboard, and uneven surfaces — because the compressible photopolymer plate conforms to surface topography in a way that a rigid steel cylinder cannot. Flexo also handles substrates with poor dimensional stability (stretchy films, lightweight papers) more forgivingly, because plate-to-substrate contact is lighter and shorter than gravure’s impression nip.

The critical decision factor for substrate selection is this: if your product lives on a rough, absorbent, or unusually thin substrate, do not choose a printing process before you test. Send your actual material to both gravure and flexo press suppliers and run it. The results will tell you more than any specification sheet.

How to Recognize Quality Gravure Printing in the Wild

Once you know what to look for, distinguishing gravure from other printing processes becomes a practical skill — and a surprisingly satisfying one to deploy in a supermarket aisle. Here are four tell-tale signs, in order of reliability:

1. Check text edges under magnification. This is the most definitive test. Use your phone camera’s macro mode or a small magnifier — if the edges of small text (below about 10 points) show a subtle zigzag or serrated pattern, you are looking at gravure. This is the signature of engraved cells arranged in a grid pattern. Clean, smooth letter edges indicate flexo or offset printing.

2. Try to scratch the print off. On flexible packaging, scratch the printed surface firmly with your fingernail. If nothing comes off, the print is likely reverse-printed gravure — the ink is sandwiched between two film layers and physically inaccessible. If the ink flakes or smears, it is surface-printed, which could be either flexo or surface gravure (less common for food packaging). The reverse-print structure is gravure’s default for flexible packaging because it puts the thick ink film where it cannot be damaged.

3. Look at large solid-color areas. Find a package with a big block of dark color — navy blue, deep red, or black. Hold it at a glancing angle to the light. A gravure-printed solid area looks like a continuous, velvety surface with no visible dots or pinholes. A flexo-printed solid may show a subtle orange-peel texture or scattered tiny unprinted spots where the anilox roller’s cell pattern transferred ink incompletely.

4. Examine photographic gradients. Find a package with a photographic image that transitions smoothly from light to dark — a sunset sky on a tea box, a gradient background on a cosmetic carton. Under magnification, gravure’s tonal transitions appear continuous, with dots that change size smoothly across the gradient. Flexo gradients may show a more abrupt transition with visible dot-size “steps” where the plate’s halftone screening changes from one line count to another.

Try these four checks on your next grocery trip. The chip aisle alone will keep you occupied for ten minutes.

From Examples to Equipment: What to Look for in a Gravure Printing Machine

If the examples above have convinced you that gravure belongs in your production line, the next step is evaluating equipment. A gravure press is a 10- to 15-year capital investment — the decisions you make during supplier selection will define your product quality, production cost, and business flexibility for the next decade.

Here are five dimensions to evaluate systematically, regardless of which supplier you are considering:

1. Print width and color stations. Work backward from your product. What is the largest bag or label your biggest customer orders? That dimension — plus trim allowance — determines your minimum web width. Most flexible packaging gravure presses run 600-1,300 millimeters wide with six to ten color stations. Buying wider than you need adds cost without adding capability; buying narrower limits your future order book.

2. Registration accuracy. This is the single most important number on the specification sheet. Standard mechanical registration holds ±0.15 millimeters; a fully servo-driven press with automatic register control can achieve ±0.1 millimeters or better. That 0.05-millimeter difference determines whether your packaging looks like a national brand or a budget alternative. The upgrade from mechanical to servo adds 30-50 percent to the press price — and for premium packaging work, it pays for itself within the first year of avoided rewaste alone.

3. Drying and emission control. Solvent-based gravure inks require hot-air drying at 60-80°C, and the evaporated solvents must be captured or destroyed to meet environmental regulations. If you are exporting to the European Union or North America, confirm that the press includes a solvent recovery or thermal oxidation system — retrofitting one later costs more than specifying it upfront. Water-based inks are a growing alternative, driven by sustainability requirements, but they require longer dryer tunnels and higher temperatures (80-120°C) to achieve the same line speed.

4. Verify the supplier’s case studies. A specification sheet is a promise. A production video is evidence. Before committing, ask any potential supplier for video footage of their machines running under production conditions — not a promotional clip, but a real factory floor recording showing multi-color registration, tension stability, and print quality at operating speed. Request test prints on your own substrate with your own artwork. Ask which countries the supplier has already exported to — CE certification, RoHS compliance, and regional voltage/frequency standards vary by market, and a supplier who has never shipped outside their home region will learn these requirements at your expense.

5. After-sales support is non-negotiable. A gravure press is not a printer — you cannot return it to the store if it stops working. The real cost of the equipment is not the purchase price; it is the downtime when something goes wrong and you do not have a technician who can fix it. Ask these questions before signing anything: Does the supplier provide on-site installation and operator training? What is the guaranteed response time for remote support — 24 hours, 48 hours, or “we will get back to you”? Do they stock spare parts for the specific model you are buying, or are critical components made to order with eight-week lead times?

The difference between a supplier who answers these questions with specific names, dates, and reference contacts — and one who answers with “don’t worry, we take care of everything” — is the difference between a production asset and a very expensive problem.

One practical way to stress-test a supplier’s claims is to look for verifiable case studies. For example, a gravure machine manufacturer with documented installations across multiple regions — a stand-up pouch production line in Russia combining rotogravure printing, laminating, slitting, and pouch-making equipment; non-woven bag machines running for over two years in Kenya; a repeat order for high-speed wine capsule machines from an Italian customer — is demonstrating something more valuable than a specification sheet: proof that their equipment works in different regulatory environments, power conditions, and operator skill levels. When evaluating suppliers, prioritize those who can point to real production lines you can verify over those who only show brochure photography (Kete Group case studies).

If you are evaluating gravure equipment and want to compare specifications across the full range of rotogravure printing machines — from entry-level four-color units to fully servo-driven ten-color systems — additional technical documentation is available at Kete Group’s rotogravure machine page.
